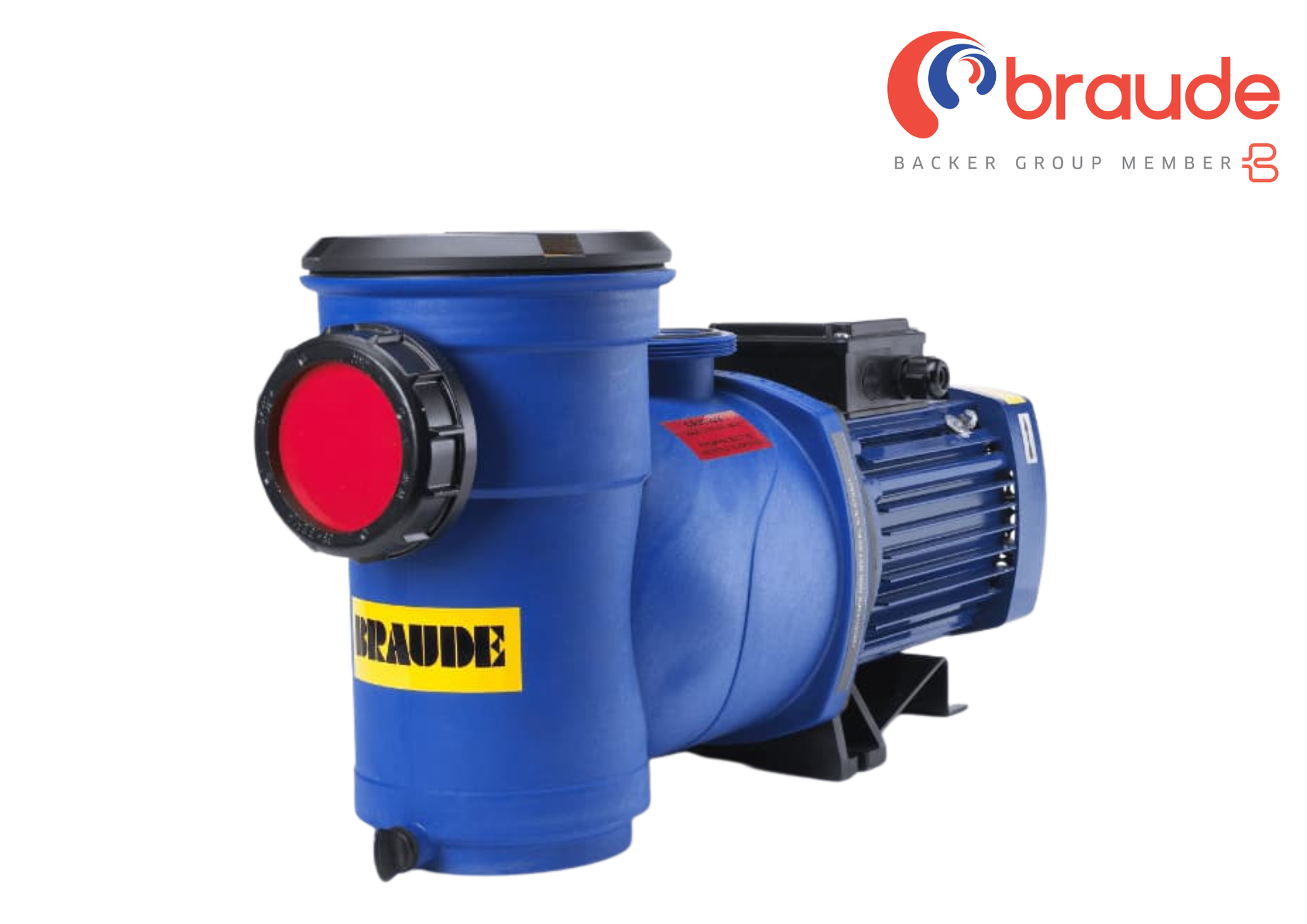

Braude Self Priming Chemical Pump Stainless Steel Seal

Product Information

Key features

- Integral Self priming chamber
- Lightweight and robust
- Corrosion and stain resistant
- High efficiency closed impeller
- Choice of mechanical seals to suit application
- Easy maintenance
- Leak proof union connections with adaptors available for existing BSP

Technical data

- Operating temperature up to 100°C
- High flow rate - up to 35m³/Hr

Braude self priming pumps are manufactured from robust polymers.

Braude pumps have an integral self priming chamber which when filled will allow the pump to lift from a height of approximately 4m. This makes the pump ideal for emptying tanks below ground level such as a settlement tank.

The pumps provide operating heads up to 17m and suction lift up to 4m. With a stainless steel for less arduous applications (Water).

Six motor sizes are available from 0.25kW to 1.5kW, all are rated to IP55 giving flow rates up to 30 M³/hr.  All pumps are supplied with clear installation instructions, and Braude technical staff are always available to offer advice.

Variants in this product range are listed below:

Braude Self Priming Chemical Transfer Pump - Stainless Steal Seal

Braude Pumps Brochures and Datasheets:

> Braude Chemical Pumps

> Braude Corrosion Chemical Transfer Pumps

> SL025-07 Braude Self Priming Pump

> SL139-02 Braude Heavy Duty Chemical Pump

Further Datasheets, installation instructions and chemical charts can be downloaded from our website here.
