Frogspawn – Thermal Insulation Spheres

Floating Insulation for Open Process Tanks

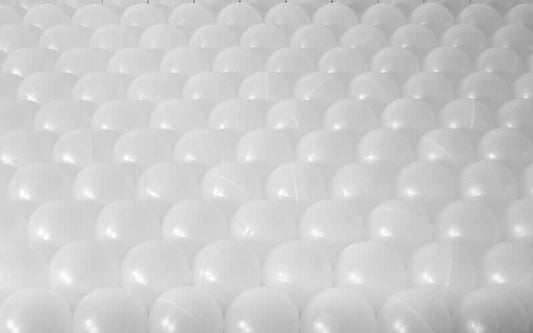

Frogspawn Thermal Insulation Spheres are a simple yet highly effective solution
for reducing heat loss, vapour emissions, and energy consumption in open-topped industrial tanks. These hollow polymer spheres float on the surface of liquids to form a continuous insulating blanket, ideal for use in electroplating, anodising, chemical processing, and steel treatment.

Our Frogspawn Thermal Insulation Range

Frogspawn Thermal Insulation Spheres

  • Function: Floating insulation layer for open tanks
  • Material: Polypropylene (PP) standard; HDPE available on request
  • Sizes Available: 10mm to 150mm diameter
  • Stock Sizes: 20mm, 25mm, 38mm, 45mm, 50mm (others by special order)
  • Applications: Electroplating tanks, chemical baths, steel processing lines



Key Benefits:

  • Reduces heat loss by up to 75%
  • Reduces vapour loss by up to 90%
  • Minimises splashing and improves bath stability
  • Saves energy and reduces liquid replacement costs
  • Improves working environment and reduces corrosion from vapour



Performance & Coverage:

  • 10mm: 5000 pcs/kg, covers ~11.6 m²
  • 20mm: 2000 pcs/kg, covers ~2.9 m²
  • 25mm: 2000 pcs/kg, covers ~1.85 m²
  • 38mm: 2000 pcs/kg, covers ~0.8 m²
  • 50mm: 1000 pcs/kg, covers ~0.465 m²

Larger sizes (70mm, 100mm, 150mm) available on request

Why Choose Frogspawn?

  • Non-invasive: Workloads like jigs and components pass through easily
  • Chemical-resistant: Suitable for aggressive industrial fluids
  • Customisable: Available in various sizes and materials
  • Low maintenance: No moving parts, long-lasting performance
