Product Information
Key features
- Integral Self priming chamber
- Lightweight and robust
- Corrosion and stain resistant
- High efficiency closed impeller
- Choice of mechanical seals to suit application
- Easy maintenance
- Leak proof union connections with adaptors available for existing BSP
Technical data
- Operating temperature up to 100°C
- High flow rate - up to 35m³/Hr

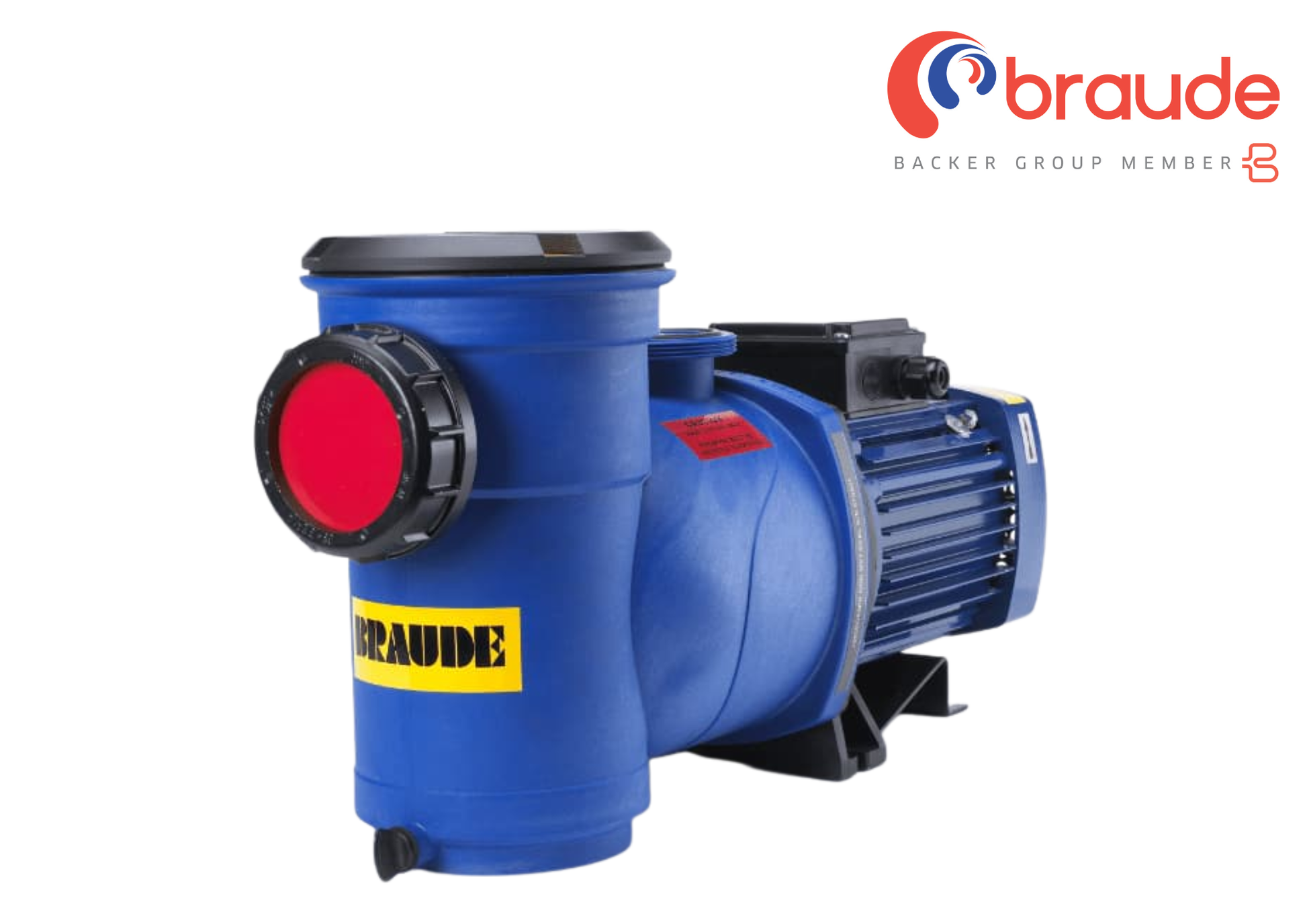

Braude self priming pumps are manufactured from robust polymers.
Braude pumps have an integral self priming chamber which when filled will allow the pump to lift from a height of approximately 4m. This makes the pump ideal for emptying tanks below ground level such as a settlement tank.
The pumps provide operating heads up to 17m and suction lift up to 4m, the Braude non metallic seal with its unique viton bellows, for chemical service.
Six motor sizes are available from 0.25kW to 1.5kW, all are rated to IP55 giving flow rates up to 30 M3/hr. All pumps are supplied with clear installation instructions, and Braude technical staff are always available to offer advice.
Variants in this product range are listed below:
Braude Self Priming Chemical Transfer Pump - Non-Metallic Seal
| Model | Description | Voltage | Phase |
| J50ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J50ECX | Non Metallic Seal | 415V | Three Phase Motor |
| J75ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J75ECX | Non Metallic Seal | 415V | Three Phase Motor |
| J100ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J100ECX | Non Metallic Seal | 415V | Three Phase Motor |
| J150ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J150ECX | Non Metallic Seal | 415V | Three Phase Motor |
| J200ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J200ECX | Non Metallic Seal | 415V | Three Phase Motor |
| J250ECX | Non Metallic Seal | 240V | Single Phase Motor |
| J250ECX | Non Metallic Seal | 415V | Three Phase Motor |
Braude Pumps Brochures and Datasheets:
> Braude Corrosion Chemical Transfer Pumps
> SL025-07 Braude Self Priming Pump
> SL139-02 Braude Heavy Duty Chemical Pump
Further Datasheets, installation instructions and chemical charts can be downloaded from our website here.
